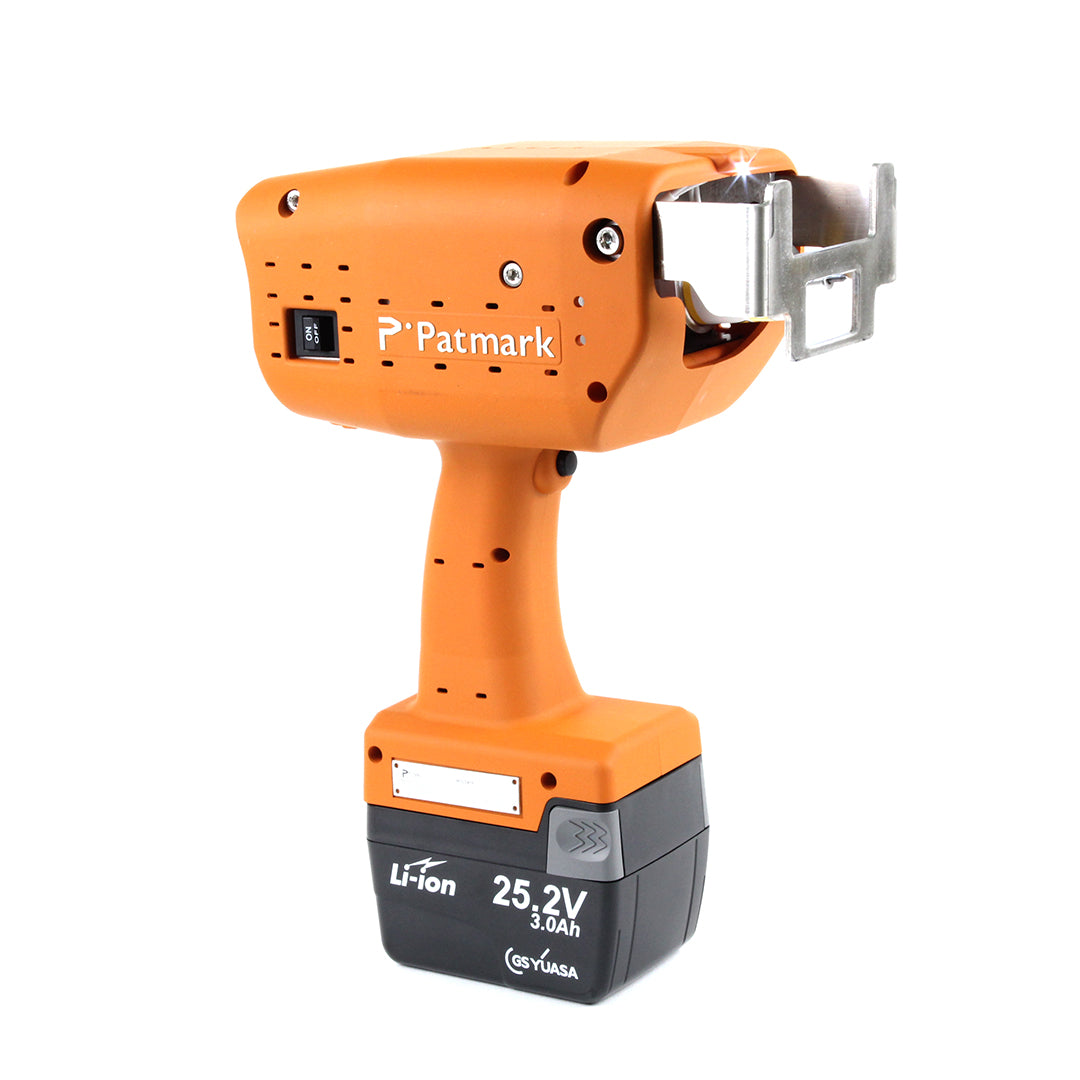

Expand your marking capabilities with the Patmark industrial pin marker! Featuring a wide 33mm (1.3") window, it gives you an efficient and cost-effective variable marking solution. Achieve permanent and deep marks using a durable tool that is fully portable with the rechargable battery. Connect through an iOS or android device to work wire-free for greater ease of use and a faster change of marking designs.

Need additional or replacement pins? Click here to by a replacement pin and spring!

Features:

  • Can be used for marking alphabet characters, numbers, and various symbols in addition to logos from BMP and JPG files

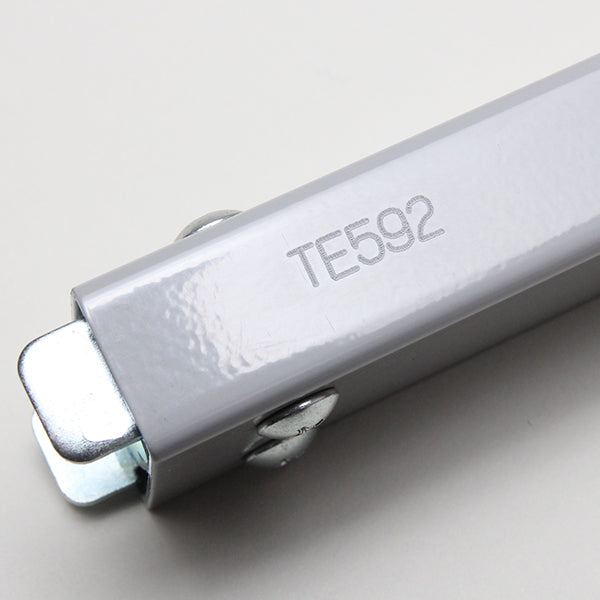

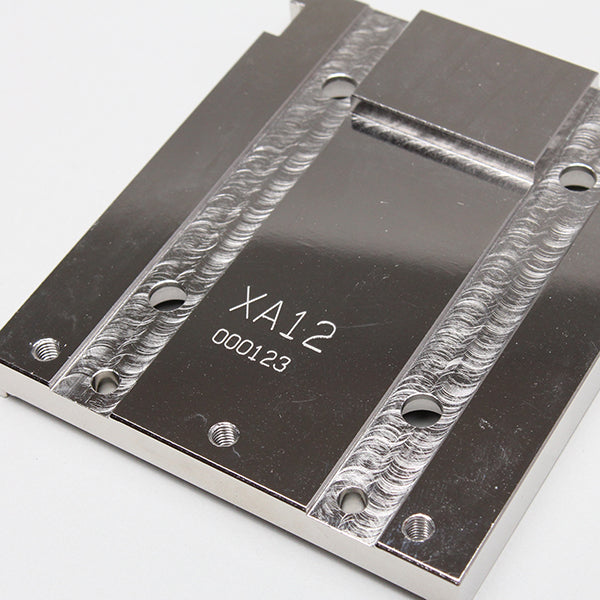

  • Great for dot peen marking metal, plastic, paper, and wood
  • Marking area of 1.3" (33mm) x 0.6" (15mm)
  • Adjustable text height and options for multiple line marking using the included Windows software
  • Adjustable marking force
  • Adjustable font resolution to ensure the precise clarity needed
  • Capable of creating QR codes and data matrices
  • Incremental serial numbering using included Windows software from 1 to 9999
  • Date marking available using included Windows software for year, month, day, hour, minute, second, Julian date, and shift
  • Capable of storing 255 files in the handheld device
  • Assembled in Japan


Availability:

Special order - please call for availability

This product can not be returned



App PatMark Windows Software
Multiple-line marking One line only Multiple lines are possible up to 30 fields
Text height Choose from Small, Medium, and Large sizes. 1 to 15 mm with 0.5mm pitch increments.
Choose from 1mm to 15mm, in 0.1 mm pitch increments.
Marking force Choose from weak, medium, and strong. *Value from 0 (weak) and 9 (strong) can be specified in the default setting menu.
Enter a value between 0 (weak) and 9 (strong).
Font quality Choose from low, medium, and high. *Value from 1 (low - faster) and 9 (high - slower) can be specified in the default setting menu. Enter a value between 1 (low - faster) and 9 (high - slower).
Logo marking Only Available Through PatMark Windows Software

BMP and JPG data – browse and trace in Logo Editor

DXF data – auto convert *Only when connecting with a PC

2D code Only Available Through PatMark Windows Software

QR code (up to 80 alphanumeric characters and symbols)

Data matrix (up to 80 alphanumeric characters and symbols)

Serial numbers Only Available Through PatMark Windows Software Numbering range from 1 to 9999.
Date marking Only Available Through PatMark Windows Software Year, month, day, hour, minute, second, Julian date, shift

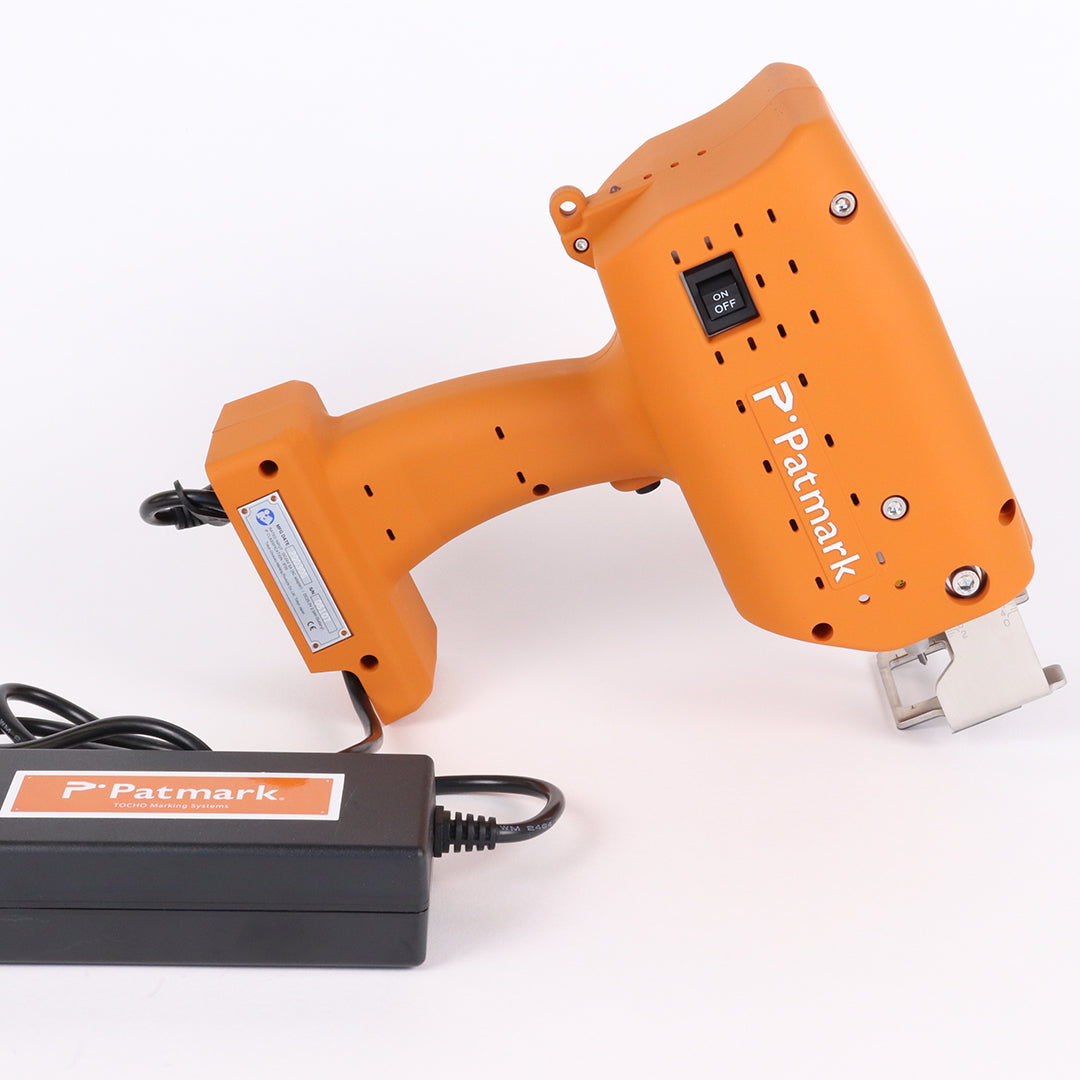

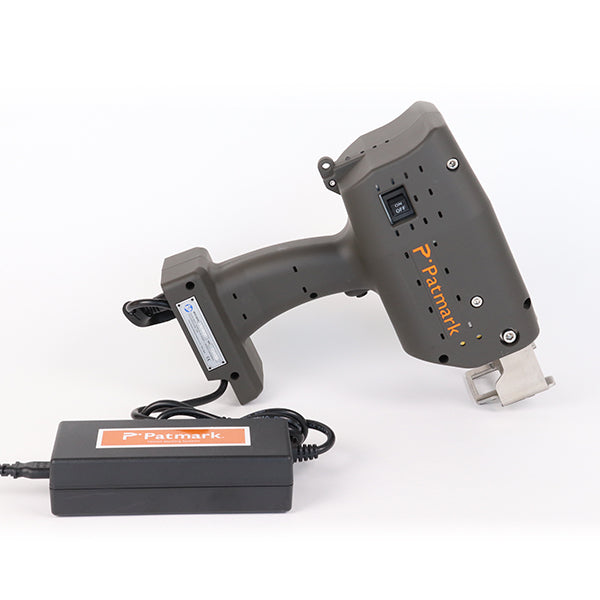

Power supply AC adapter Input: AC100V-240V, 50/60Hz (120W)

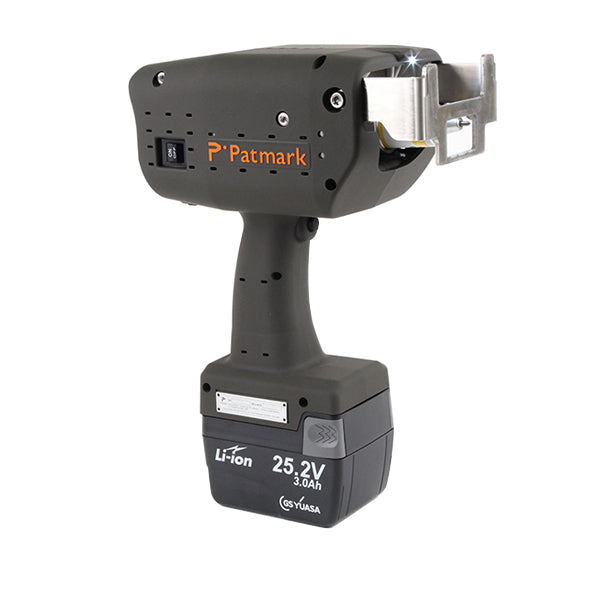

Lithium-ion battery *25.2V, 2.0Ah
Battery charger Input: AC100V-240V, 50/60Hz
Weight When using AC adapter 2.3kg (4.9lbs)
When using
lithium-ion battery (*2Ah type)
2.9kg (6.4lbs)
Dimensions When using AC adapter 124mm (4.9in) x 221mm (8.7in) x 250mm (9.9in)
When using
lithium-ion battery (*2Ah type)
124mm (4.9in) x 221mm (8.7in) x298.4mm(11.7in)
Marking area

X axis 33mm (1.3in) x Y axis 15mm (0.6in)

Stylus Pin Standard Pin (52mm long) 120 degree angle
Software App Wi-Fi
Windows software Wi-Fi, USB
Markable materials Metal (up to about HRC62), plastic, paper, and wood


*This product is not eligible for discounts*


Order Form

Shipping calculated at checkout.
Regular price
Starts At: $4,250.00
Sale price
$4,250.00

Expand your marking capabilities with the Patmark industrial pin marker! Featuring a wide 33mm (1.3") window, it gives you an efficient and cost-effective variable marking solution. Achieve permanent and deep marks using a durable tool that is fully portable with the rechargable battery. Connect through an iOS or android device to work wire-free for greater ease of use and a faster change of marking designs.

Need additional or replacement pins? Click here to by a replacement pin and spring!

Features:

  • Can be used for marking alphabet characters, numbers, and various symbols in addition to logos from BMP and JPG files
  • Great for dot peen marking metal, plastic, paper, and wood
  • Marking area of 1.3" (33mm) x 0.6" (15mm)
  • Adjustable text height and options for multiple line marking using the included Windows software
  • Adjustable marking force
  • Adjustable font resolution to ensure the precise clarity needed
  • Capable of creating QR codes and data matrices
  • Incremental serial numbering using included Windows software from 1 to 9999
  • Date marking available using included Windows software for year, month, day, hour, minute, second, Julian date, and shift
  • Capable of storing 255 files in the handheld device
  • Assembled in Japan


Availability:

Special order - please call for availability

This product can not be returned



App PatMark Windows Software
Multiple-line marking One line only Multiple lines are possible up to 30 fields
Text height Choose from Small, Medium, and Large sizes. 1 to 15 mm with 0.5mm pitch increments.
Choose from 1mm to 15mm, in 0.1 mm pitch increments.
Marking force Choose from weak, medium, and strong. *Value from 0 (weak) and 9 (strong) can be specified in the default setting menu.
Enter a value between 0 (weak) and 9 (strong).
Font quality Choose from low, medium, and high. *Value from 1 (low - faster) and 9 (high - slower) can be specified in the default setting menu. Enter a value between 1 (low - faster) and 9 (high - slower).
Logo marking Only Available Through PatMark Windows Software

BMP and JPG data – browse and trace in Logo Editor

DXF data – auto convert *Only when connecting with a PC

2D code Only Available Through PatMark Windows Software

QR code (up to 80 alphanumeric characters and symbols)

Data matrix (up to 80 alphanumeric characters and symbols)

Serial numbers Only Available Through PatMark Windows Software Numbering range from 1 to 9999.
Date marking Only Available Through PatMark Windows Software Year, month, day, hour, minute, second, Julian date, shift




Power supply AC adapter Input: AC100V-240V, 50/60Hz (120W)
Lithium-ion battery *25.2V, 2.0Ah
Battery charger Input: AC100V-240V, 50/60Hz
Weight When using AC adapter 2.3kg (4.9lbs)
When using
lithium-ion battery (*2Ah type)
2.9kg (6.4lbs)
Dimensions When using AC adapter 124mm (4.9in) x 221mm (8.7in) x 250mm (9.9in)
When using
lithium-ion battery (*2Ah type)
124mm (4.9in) x 221mm (8.7in) x298.4mm(11.7in)
Marking area

X axis 33mm (1.3in) x Y axis 15mm (0.6in)

Stylus Pin Standard Pin (52mm long) 120 degree angle
Software App Wi-Fi
Windows software Wi-Fi, USB
Markable materials Metal (up to about HRC62), plastic, paper, and wood


*This product is not eligible for discounts*
