Low Stress Dot-Style Number Stamp Sets

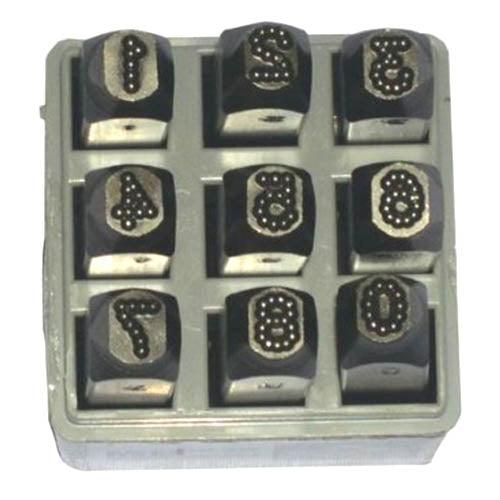

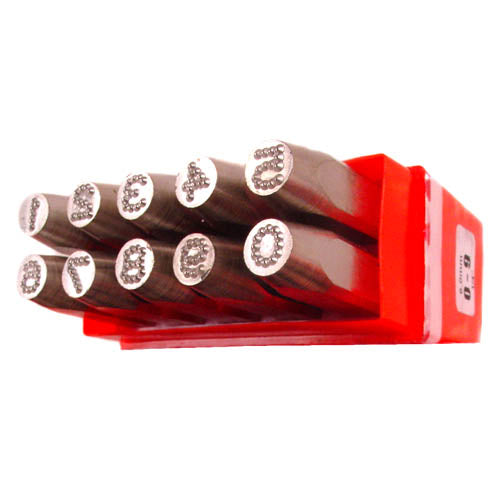

NOTE: Pryor sets are nickel plated and come in a red case, Hanson Sets are in a gray case.

These Low Stress Dot-Style Number Stamps feature specially designed dotted single digit characters (0-9). Although these stamps are used for similar applications as the Round-Face low stress stamps, the Dot-Style Low Stress stamps are the best option for products that require a reduced stress marking method. The Dot-Style Stamps are the ideal low-stress marking solution for the Aerospace, Nuclear and Oil industries.

Available in character sizes from 3 mm or 1/8" (.125") to 12.5 mm 1/2" (.500") also available in A - Z letter sets and combination sets. Several sizes are manufactured by Pryor, and come with a bright red plastic case, several other sizes are manufactured by Hanson, and come in a gray plastic case. See chart below for details.

Features

• Easily stamp numbers without fear of breakage or premature character wear.
• All Numbers from 0-9
• Dotted-Style characters, an ideal low-stress choice for fragile surfaces
• Quality Nickel plated heat-treated steel
• Stamp front side forged to indicate correct orientation
• Beveled for precision marks
• Character sizes from 3 mm or 1/8" (.125") to 12.5 mm 1/2" (.500") sold separately in sets of figures 0 - 9, letters A - Z or combination sets.
• Packed in strong plastic boxes with separate compartments for each stamp, to allow rapid selection. Pryor cases are red, Hanson are gray.
• Suitable for all engineering and Industrial applications
• Hanson Sets: Quality heat-treated, alloy steel, made in the USA
• Pryor Sets: Quality Nickel plated heat-treated alloy steel, made in the UK

Other Details

• Made of quality controlled steel alloy
• Precision heat treated to a hardness of 58-62 Rockwell C at the character and 32-40 Rockwell C at the striking end.
• Used with 16 oz. Ball-Peen Hammer or Impact Press
• Safety note - we recommend use of safety goggles when using these products.

Availability

Ships in approx. 2-3 business days

• Hanson & Pryor sets are different - See above photos

PLEASE BE SURE OF YOUR FONT SIZE, THIS PRODUCT CANNOT BE RETURNED
